PDF layers for takeoff: a practical guide for quantity surveyors

Use PDF layers as discipline-and-version separators for every takeoff markup, and maintain an auditable markups list as your single source of truth. That one discipline alone cuts double-counting, speeds peer review, and gives you a defensible record for tender submissions.

The core rule: Assign every markup to a named layer before you count anything. A markup without a layer is a liability — it cannot be audited, filtered, or handed to an automated tool with confidence.

• Isolate disciplines and versions. Keep structural, mechanical, electrical, and architectural markups on separate layers, and version each drawing revision rather than overwriting it.
• Maintain the markups list. In Bluebeam Revu, Adobe Acrobat, or Quantiflow, the markups list is the audit trail. Export it as CSV at every milestone.

Key takeaways

Using PDF layers as discipline-and-version separators, combined with an auditable markups list, is the single most effective way to reduce counting errors and produce defensible quantity takeoffs.

Table of Contents

• What are PDF layers (OCGs) and why do they matter for takeoff?
• How should you structure and name layers for quantity takeoff?
• How do you view, create, and assign markups to layers in Bluebeam Revu and Acrobat?
• What do you do when drawings have no layers?
• Layer-based practices that reduce errors and speed up takeoff
• How do automated takeoff tools use layers and vector data?
• Troubleshooting common layer problems
• How UK teams actually use layers on live projects
• Quantiflow automates NRM2-aligned takeoff while keeping every count traceable
• Sources

What are PDF layers (OCGs) and why do they matter for takeoff?

PDF layers are implemented as Optional Content Groups (OCGs): independently controllable levels that store artwork, text, and annotations. Adobe Acrobat can reorder, merge, flatten, and edit layer properties, making OCGs the foundation of any structured takeoff workflow.

Understanding which PDF type you are working with determines everything that follows.

• Vector PDFs are produced directly from CAD or BIM software. They contain native geometry, CAD metadata, and text that automated tools can read and measure precisely.
• Hybrid PDFs combine vector elements with embedded raster images. Automated extraction works on the vector portions; raster areas need calibrated manual measurement.
• Raster PDFs are scanned drawings. No native geometry exists. Every measurement requires calibration, and OCR is needed to read text.

Layer visibility and print settings also affect what a takeoff tool or a manual measurer will actually see. A layer set to non-printing will not appear in a printed set, and a layer hidden at export will be invisible to any tool that reads the rendered output rather than the raw OCG data.

Pro Tip: Open the PDF in Adobe Acrobat and check View > Show/Hide > Navigation Panes > Layers. If the panel is empty, you have a raster or flattened PDF. If layers appear, check whether they carry CAD metadata by hovering over geometry — a vector element will show coordinates. That check takes thirty seconds and directs your entire next step: vector means prefer automated extraction; raster means prepare for calibrated measurement.

How should you structure and name layers for quantity takeoff?

Consistent naming is the difference between a layer structure a colleague can audit in five minutes and one that requires a phone call to decode. The convention below is designed for UK quantity surveyors working to NRM2 and is immediately usable in Bluebeam Revu or Acrobat.

Naming rules

• Use short discipline prefixes in capitals: ARCH, STRUCT, MEP, CIVIL, EXT.
• Append a version identifier: v1, v2, or a date stamp v20250601.
• Separate segments with underscores: ARCH_v1_MEAS, STRUCT_v2_SYM.
• Use _MEAS for measured geometry and _SYM for symbol legends. Never mix them on the same layer.
• Use _SUPERSEDED rather than deleting old layers. Superseded layers preserve evidence and support revision comparison workflows without remeasuring entire plans.

Example layer tree

Keeping _MEAS and _SYM layers separate prevents the most common source of double-counting: accidentally measuring a symbol that was placed only as a legend reference. The REVIEW_ child layers give a peer reviewer a clear queue without touching the underlying geometry.

Pro Tip: Copy this layer tree into a Bluebeam Revu template file and save it as your practice standard. Every new project starts from the same structure, which means any team member can pick up a file mid-project without a briefing.

How do you view, create, and assign markups to layers in Bluebeam Revu and Acrobat?

Bluebeam Revu

1. Open the Layers panel: View > Panels > Layers (or press Alt+L).
2. Click the + icon to create a new layer; name it using the convention above.
3. Select existing markups, right-click, and choose Properties > Layer to assign them.
4. To bulk-assign, select all markups in the Markups List filtered by tool type, then batch-edit the Layer property.
5. Use tool sets mapped to layers so every count tool automatically deposits markups onto the correct layer.
6. Set print visibility per layer in Layer Properties before exporting.

Bluebeam University's course library covers layer workflows in depth for teams that need structured training.

Adobe Acrobat

1. Open View > Show/Hide > Navigation Panes > Layers.
2. Click the options menu to add, rename, or delete layers.
3. Assign content to layers via Edit PDF mode; select elements and use the layer dropdown.
4. Flatten layers for distribution via Print Production > Flatten Transparency or Save As with flattening options enabled.

Collaboration and layer integrity

Share layered PDFs using Bluebeam Studio Sessions or Acrobat's shared review. Before distributing to subcontractors, lock measurement layers to prevent accidental edits. Never flatten a working file; flatten only the distribution copy. Document control practices for NRM2-aligned BoQs recommend keeping a master working file separate from issued copies.

Pro Tip: Add custom columns to the Bluebeam Markups List — NRM2 code, unit rate, and status — so every markup carries its quantity code alongside its layer assignment. That single step turns the markups list into a near-complete BoQ draft, and it is the manual equivalent of what Quantiflow automates.

What do you do when drawings have no layers?

Scanned and flattened PDFs arrive without OCGs. The workflow changes, but auditability does not.

• Create overlay layers manually. In Bluebeam or Acrobat, add new layers and trace geometry onto them. Use the naming convention above from the start, even on a blank layer structure.
• Use the markups list as the authoritative record. Every count, measurement, and annotation lives in the list. Export it at each session end.
• Calibrate before measuring. Set scale against a known dimension on the drawing. For external works quantities from site plans, a single miscalibrated scale can corrupt an entire section of the BoQ.
• Use overlay comparison to align older and newer pages and spot changes. This is the technique revision comparison workflows recommend for teams working without native layers.
• Request native CAD files when the drawing complexity or value justifies it. A scanned M&E drawing with dozens of symbol types is a strong candidate.
• Accept manual trace as the correct path when the drawing is simple, the value is low, or the client cannot supply CAD. Document the decision in the markups list.

Pro Tip: Always keep the original unmodified PDF alongside your working layered copy. Name it [ProjectRef]_ORIGINAL.pdf and lock it. If a dispute arises, the original is your evidence that you did not alter the source drawing.

Layer-based practices that reduce errors and speed up takeoff

A short pre-takeoff checklist prevents the majority of counting errors before they happen.

1. Confirm scale. Check the scale bar against a known dimension. Record the calibration factor in the markups list notes.
2. Verify the legend. Locate every symbol used on the drawing and confirm it has a _SYM layer entry. Symbols without a legend entry should be flagged before counting begins.
3. Lock uncounted layers. Lock every layer you are not actively measuring. This prevents accidental markups on the wrong layer.
4. Check print visibility. Confirm that all measurement layers are set to print before exporting a review copy.
5. One measurement per geometry layer. Never place two discipline measurements on the same layer. If a wall is both architectural and structural, it gets two separate markups on two separate layers.
6. Export the markups list as CSV at every milestone. Store it alongside the PDF in the project folder.

Pro Tip: Add a REVIEW_OPEN child layer and move every markup there as soon as it is placed. A second reviewer then moves accepted items to REVIEW_ACCEPTED. Nothing moves to the BoQ until it has been accepted. This two-step gate catches transposition errors and missed items before they reach pricing.

How do automated takeoff tools use layers and vector data?

Automated takeoff engines do not read PDFs the way a human does. They parse the underlying data structure, and the quality of that structure determines the quality of the output.

What an automated engine needs:

• Native vector geometry with consistent line weights and closed polygons.
• CAD metadata such as layer names, object types, and scale factors embedded in the file.
• A clear, consistent symbol legend on every sheet, ideally in a fixed region of interest so the engine can locate it reliably.
• Consistent layer signatures so the engine can filter by discipline without ambiguity.

Common limitations that degrade automated output:

• Raster scans produce no geometry for the engine to parse; OCR is required and introduces error.
• Inconsistent symbol geometry across sheets (the same door symbol drawn at slightly different sizes) reduces match confidence.
• Missing or off-sheet legends force the engine to guess symbol identity.
• Ambiguous markups placed on the wrong layer create false positives.

The Takeoff-Lens open-source toolchain demonstrates how automated engines bind reviewed counts to page coordinates and export audit evidence as CSV or JSON, rather than relying solely on OCR. That coordinate-binding is what makes automated counts defensible in tender submissions and post-award audits.

Quantiflow applies the same principle: every extracted quantity is bound to its source coordinates in the drawing, and the quantity surveyor can override any automated count at review. High-value or ambiguous items are flagged for manual review rather than silently accepted. For a broader view of how quantity surveying software fits into UK practice, the distinction between automation and professional judgement is the critical one.

Pro Tip: Place a small, standardised legend region of interest in the same corner of every sheet. Automated tools that use symbol matching will locate it faster and with higher confidence, reducing the number of uncertain items that need manual review.

Troubleshooting common layer problems

Layers not visible

In Bluebeam Revu, open the Layers panel and check that the eye icon is active for each layer. In Acrobat, open the Layers navigation pane and click the visibility toggle. If layers are present but blank, the content may have been assigned to the wrong layer at creation.

Markups not assigning to a layer

1. Confirm the target layer exists and is unlocked.
2. Select the markup, open Properties, and set the Layer field explicitly.
3. In Bluebeam, check that the active layer in the toolbar matches the intended target before placing new markups.

How to flatten safely

1. Work on a copy, never the original.
2. In Acrobat, use Print Production > Flatten Transparency; in Bluebeam, use Document > Flatten. Both tools allow you to merge or flatten layers while preserving a pre-flatten archive.
3. Export the markups list as CSV before flattening. Once flattened, layer assignments are lost.

Missing layers on receipt

If a PDF arrives without layers, check whether the sender used a PDF printer rather than a native export. Request a re-export from the CAD source. If that is not possible, apply the no-layers workflow above and document the reason in the project record. The Bluebeam community is a practical resource for tool-specific edge cases.

When to revert to manual trace

Revert when: the PDF is a low-resolution scan, the drawing value does not justify OCR processing time, or the symbol geometry is too inconsistent for reliable automated matching. Record the decision and the reason in the markups list notes field.

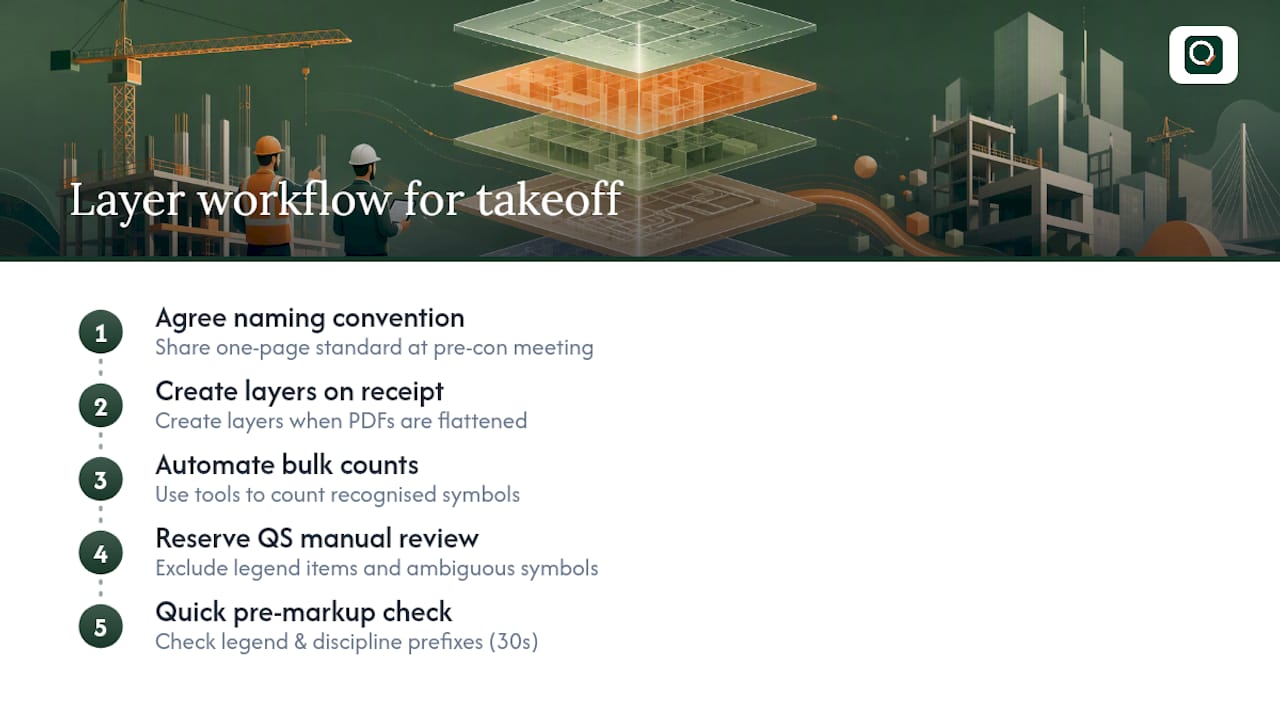

How UK teams actually use layers on live projects

Most UK project teams arrive at a pragmatic middle ground rather than a textbook layer structure. Subcontractors often issue scanned PDFs or flattened exports from older CAD systems, and the main contractor's QS team ends up creating layers from scratch on receipt. That is not a failure of process; it is the reality of document control on live sites.

The teams that move fastest are the ones that have agreed their layer naming convention before the project starts, not during it. A simple one-page standard, shared at the pre-construction meeting, means every discipline's markups are filterable from day one. The role of drawings in quantity measurement is well understood in NRM2 practice; the layer structure is simply the mechanism that makes that role auditable.

Where professional judgement matters most is at the boundary between automated counts and manual review. An automated tool will count every instance of a symbol it recognises. A quantity surveyor will notice that three of those instances are in a legend, not on the drawing, and exclude them. That distinction is not something a naming convention solves; it requires a reviewer who understands the drawing.

The balance to strike: use layers and automation to handle volume, and reserve professional time for the ambiguous items that genuinely need it.

Pro Tip: Agree one team rule before takeoff begins: always check the legend layer and confirm discipline prefixes match the drawing title block before placing a single markup. That thirty-second check prevents the most common source of rework on UK projects.

Quantiflow automates NRM2-aligned takeoff while keeping every count traceable

Spending hours managing layer visibility and manually exporting markups lists is time that could go into reviewing quantities and pricing. Quantiflow gives UK quantity surveyors, builders, and architects a faster path: AI-driven extraction from PDF drawings, with every count bound to its source coordinates and a live UK rate library ready for pricing.

Every quantity Quantiflow produces is traceable to the drawing page and element it came from. You can override any automated count, flag ambiguous items for manual review, and export a full audit trail as PDF or Excel. The result is an NRM2-aligned BoQ that carries the evidence a tender submission or post-award audit requires. Pricing starts at £39/month for solo practitioners, with Business and Enterprise tiers for larger teams.

Start your free trial at Quantiflow and see how much of your next takeoff can be handled before you open the layers panel.
