The fastest route from a PDF drawing set to a priced, NRM2-compliant Bill of Quantities is a hybrid workflow: automated first-pass extraction followed by QS verification, NRM2 structuring, and export to Excel or PDF. You need three things before you start: a copy of RICS NRM2, a drawing register, and access to a live UK rate library.
Open the PDF set, confirm the drawing scale and legibility, then run your automated takeoff or begin a manual measured takeoff section by section. Hybrid AI+QS workflows typically reduce takeoff time from 3–5 hours to 45–90 minutes and cut measurement variance substantially compared with fully manual methods.
- Confirm drawing scale on every sheet before measuring
- Build a drawing register with revision indices from day one
- Use NRM2 measured work sections to structure items from the outset
- Record every assumption before pricing begins
Table of Contents
- What does 'measure PDF drawings' mean in an NRM2 context?
- How do you go from a PDF drawing set to an NRM2 BoQ?
- How do you maintain an audit trail for NRM2 takeoffs?
- What should an NRM2 BoQ export contain?
- When should you automate takeoffs and when should you measure manually?
- Key takeaways
- The case for keeping the QS in the loop
- Quantiflow turns PDF drawings into priced NRM2 BoQs
- Useful sources and further reading
What does 'measure PDF drawings' mean in an NRM2 context?
In this article, measuring PDF drawings means producing NRM2-aligned quantity takeoffs and priced Bills of Quantities from architectural PDF sets — not clicking points on a screen to read off a dimension. The distinction matters because NRM2 is the UK industry standard for detailed measurement, requiring itemised work sections, standardised measurement rules, and descriptions suitable for tendering and contract use.
In scope:
- Architectural drawings (plans, sections, elevations, details)
- Structural and MEP references where they affect measured quantities
- Specifications and employer's requirements that define scope
Out of scope: generic click-to-measure PDF apps, non-UK measurement standards, and homeowner or DIY pricing exercises.
QSs carry professional responsibility for the quantities they certify. SME builders and architects using measured outputs for procurement or design decisions must understand where QS judgement is required and where automation can assist. Before any takeoff begins, you need a drawing register, specification, and confirmed drawing scale — without these, no measurement is traceable.
How do you go from a PDF drawing set to an NRM2 BoQ?
Follow this sequence. Each stage has a defined output so you can check progress and maintain traceability.
- Intake and register — log every drawing by number, title, revision, and date. Record the specification reference. Output: drawing register.
- Drawing QA — confirm scale bar accuracy, check whether files are vector or raster, and assess DPI on scanned sheets. Flag any sheet where the scale is ambiguous or annotations overlap critical dimensions. Output: QA log with pass/fail per sheet.
- Design review — read the drawings against the specification. Identify interfaces between trades (e.g. where groundworks meet frame), note existing conditions, and list clarifications needed before measurement. Output: clarifications log.
- Automated extraction — run the PDF set through your takeoff platform. Review confidence scores; flag low-confidence items for manual check. Output: raw quantity schedule with drawing references.
- Manual verification — cross-check a sample of automated quantities against the drawings. Adjust items where the automation has misread an annotation or missed a revision. Record every override with a reason. Output: verified quantity schedule.
- NRM2 structuring — organise verified quantities into NRM2 measured work sections (substructure, frame, upper floors, roof, finishes, MEP, and so on). Write item descriptions to NRM2 standard. Output: structured BoQ draft.
- Pricing — apply rates from a live UK rate library. Document rate sources and any adjustments. Output: priced BoQ.
- Export and sign-off — export to Excel, CSV, or PDF. QS signs off the final document before tender issue. Output: tender-ready BoQ.
Practitioner checklist — copy into your project folder:
- Assumptions log (one row per assumption, with drawing reference)
- Clarifications log (query, date raised, date answered, response)
- Revision notes (drawing number, old revision, new revision, quantity impact)
- Override log (item, reason for manual adjustment, reviewer initials)
For guidance on reading PDF drawings before measurement begins, the QuantiFlow blog covers annotation conventions and scale verification in detail.
Stage outputs at a glance:
| Stage | Output | Format |
|---|---|---|
| Intake | Drawing register | Spreadsheet |
| Drawing QA | QA log | Spreadsheet |
| Automated extraction | Raw quantity schedule | Platform export |
| Manual verification | Verified quantity schedule | Spreadsheet |
| NRM2 structuring | Structured BoQ draft | Word/Excel |
| Pricing | Priced BoQ | Excel/PDF |
How do you maintain an audit trail for NRM2 takeoffs?
A defensible audit trail covers four areas: scale verification, cross-check sampling, specification reconciliation, and version control.
QC checklist:
- Verify scale bar on every sheet against a known dimension before measuring
- Cross-check at least 10% of automated quantities manually against the drawing
- Reconcile every measured section against the relevant specification clause
- Confirm drawing revisions are current before finalising quantities
- Store all source PDFs with their revision index alongside the BoQ
Best practice requires a drawing and specification register so every quantity is traceable to its source document. The minimum audit log fields are:
| Field | Purpose |
|---|---|
| Drawing ID and revision | Links quantity to source |
| Measurement method | Manual, automated, or hybrid |
| Reviewer initials | Confirms QS sign-off |
| Date measured | Supports version control |
| Override reason | Records professional judgement |
| Confidence score (if automated) | Flags items needing extra scrutiny |
Sign-off at stage gates: the QS lead signs the verified quantity schedule before pricing begins, and signs the priced BoQ before tender issue. On larger projects, a second reviewer checks the 10% cross-check sample independently.
What should an NRM2 BoQ export contain?
A well-structured NRM2 export gives the estimator everything needed to price without returning to the drawings. Standard columns:
| Column | Content |
|---|---|
| NRM2 section | e.g. 5 — Substructure |
| Item description | Full NRM2-compliant description |
| Unit | m², m³, t, nr, etc. |
| Quantity | Measured quantity |
| Rate (£) | From rate library |
| Cost (£) | Quantity × rate |
| Drawing reference | Drawing number and revision |
| Assumption code | Links to assumptions log |
Export formats: Excel for estimating and ERP integration, CSV for data import, PDF for tender submission. Preserve NRM2 section headings and subtotals through the export so the structure survives format conversion. When passing data into an estimating tool, map the NRM2 section codes to the tool's cost code structure before import — a one-off mapping exercise that prevents rekeying errors on every subsequent project.
Rate library integration: use a live UK rate library versioned by quarter. Document the rate source, version date, and any regional adjustments in the BoQ preamble. For construction cost benchmarking, measured outputs paired with a versioned rate library give you a reliable basis for comparing outturn costs across projects.
When should you automate takeoffs and when should you measure manually?
Automation earns its keep on projects with good-quality vector PDFs, repetitive elements (standard floor plates, identical unit types), and tight programmes. Manual measurement is safer when drawings are scanned at low resolution, the scope is highly bespoke, or the contract risk is high enough that every quantity needs individual QS scrutiny.
Decision criteria — work through these before committing:
- Are the PDFs vector or raster? Vector files support reliable automated extraction.
- Is the DPI on scanned sheets at least 300? Below that, accuracy falls materially.
- Does the project have repeating elements (e.g. 20 identical apartments)? High repetition favours automation.
- What is the project value and programme? A £5m scheme with a two-week tender window is a strong automation candidate.
- What is the contract risk tolerance? NEC or JCT with tight remeasurement provisions requires higher QS scrutiny on every item.
Automation suitability checklist:
- Vector PDFs confirmed ✓/✗
- DPI ≥ 300 on all scanned sheets ✓/✗
- Repeating elements present ✓/✗
- Programme allows hybrid review time ✓/✗
- QS resource available for verification ✓/✗
For a first trial, automate the most repetitive measured work section (often upper floors or external walls) and verify manually before extending to the full project. This limits risk while you calibrate the platform to your drawing conventions. Quantity surveying software guides for UK professionals cover the broader integration and adoption considerations in more detail.
Key takeaways
Producing NRM2-compliant measured takeoffs from PDF drawings requires a hybrid workflow, a traceable assumptions log, and QS sign-off before any priced BoQ goes to tender.
| Point | Details |
|---|---|
| Confirm scale before measuring | Verify the scale bar on every sheet; a single error propagates across the entire takeoff. |
| Structure items to NRM2 from the start | Writing NRM2-compliant descriptions during extraction avoids a costly restructuring pass before tender. |
| Log every assumption and override | An assumptions log and override record are the minimum audit evidence for any NRM2 BoQ. |
| Automate repeating elements first | Vector PDFs with repetitive elements yield the fastest, most reliable automated extraction. |
| Quantiflow automates and audits | Quantiflow handles automated NRM2 extraction, live UK rate library pricing, and full audit logging from £39/month. |

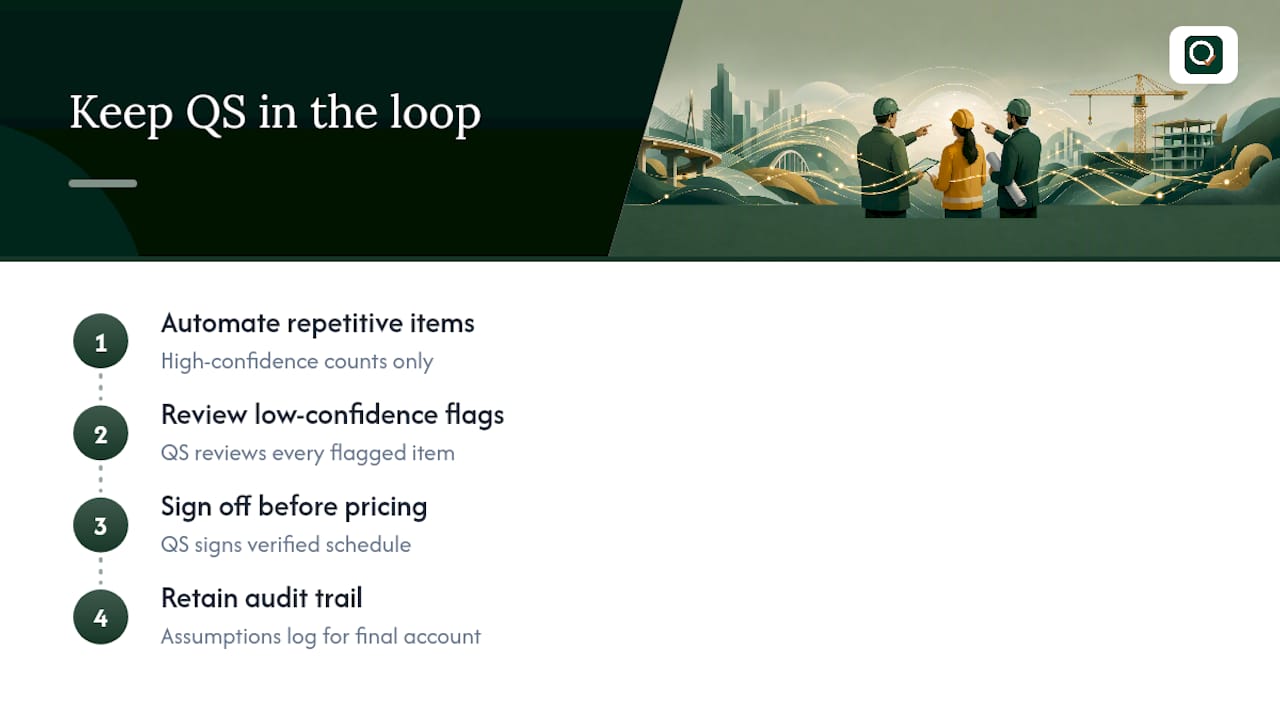

The case for keeping the QS in the loop
The conversation around AI takeoffs tends to split into two camps: those who expect full automation to replace the QS, and those who dismiss the technology entirely. Both miss the point.
The real value of a hybrid workflow is not speed alone — though cutting a 5-hour takeoff to under 90 minutes is significant. It is that automation handles the mechanical counting while the QS concentrates on the decisions that actually affect tender outcome: interfaces between trades, provisional sum scope, existing condition assumptions, and the judgement calls that no algorithm can certify. Those decisions are where disputes originate and where professional indemnity exposure sits.
The audit trail requirement in NRM2 is not bureaucracy. It is the mechanism that lets a QS defend every quantity at final account, two years after the tender was issued. Firms that treat the assumptions log as optional discover its value at the worst possible moment.
The practical recommendation: automate the repetitive, high-confidence elements first. Review every low-confidence flag personally. Sign off the verified schedule before pricing begins. That sequence preserves professional judgement, satisfies NRM2 traceability, and still delivers the time savings that make the technology worth adopting.
Quantiflow turns PDF drawings into priced NRM2 BoQs
Getting from a PDF drawing set to a tender-ready, priced BoQ in 45–90 minutes is what Quantiflow is built for. The platform automates NRM2-aligned quantity extraction from your PDF drawings, structures items into the correct measured work sections, applies rates from a live UK rate library, and logs every measurement decision in a full audit trail — so your professional judgement is recorded, not bypassed.
Quantiflow is built for UK quantity surveyors, SME builders, and architectural practices. Subscriptions start at £39/month for solo users, with Business (£149/month) and Enterprise tiers for teams. Every plan includes NRM2 structuring, manual override capability, revision history, and export to Excel and PDF.
The fastest way to evaluate it is on a real project. Run your next repetitive takeoff through Quantiflow and compare the output against your manual schedule before committing to a full subscription.
